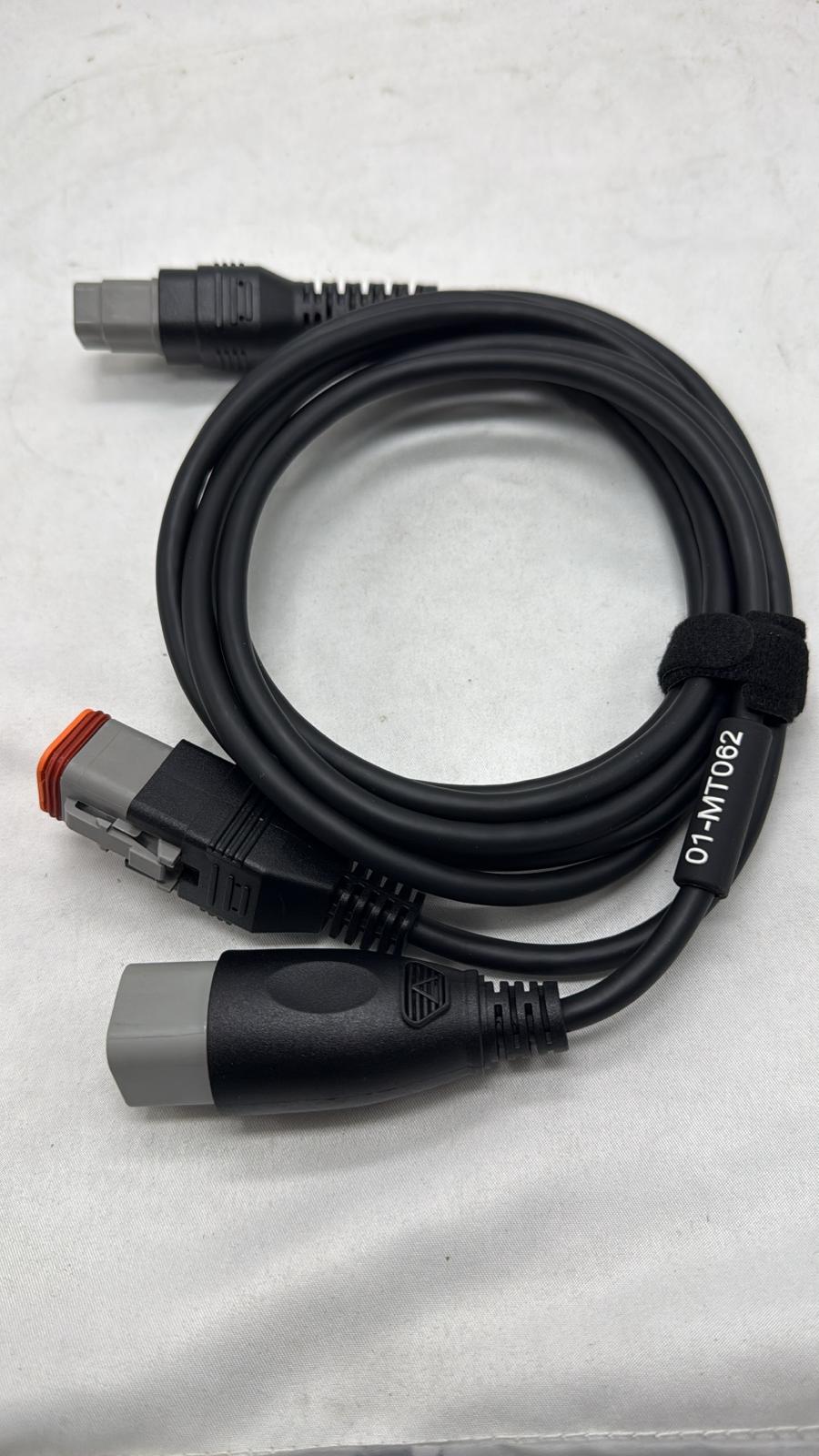

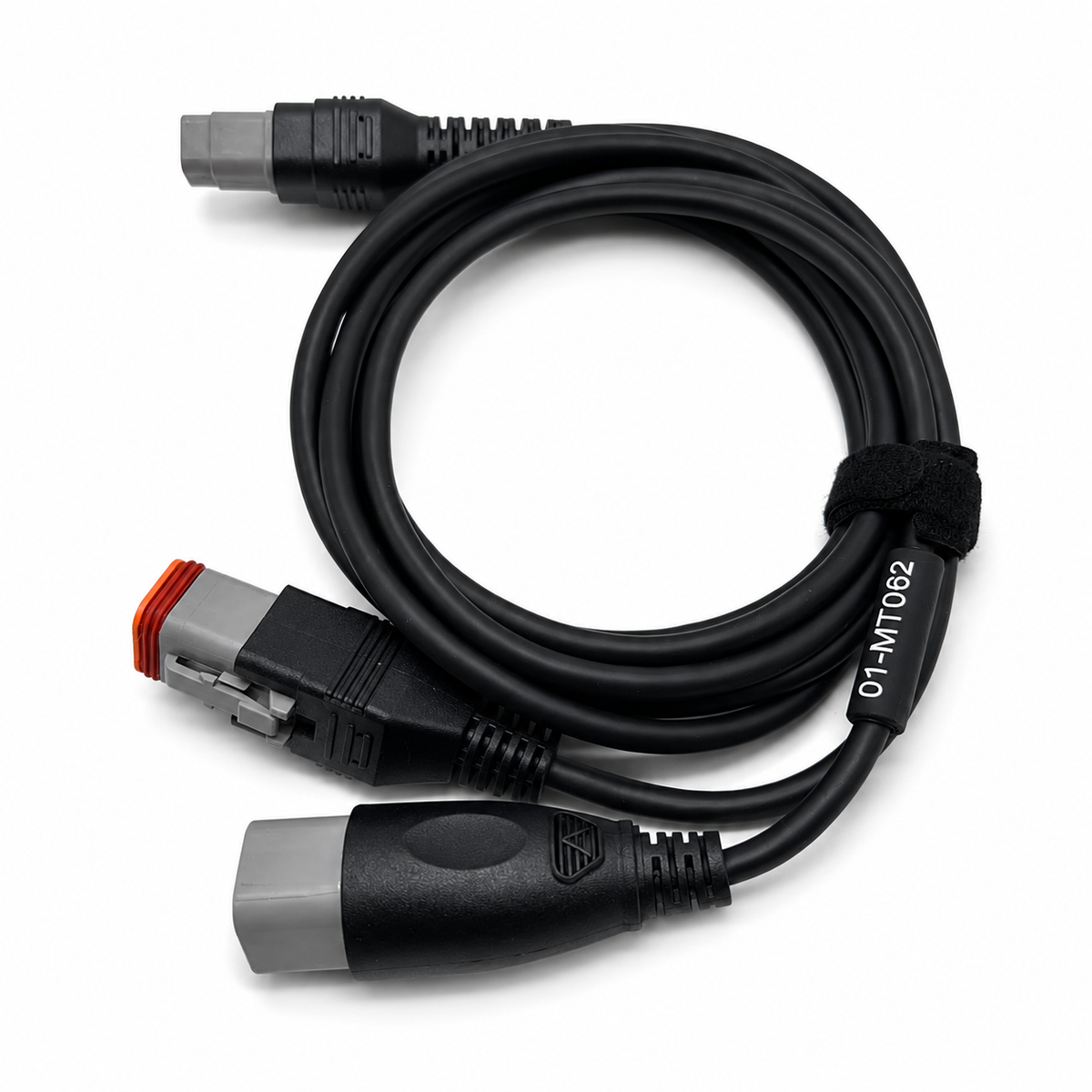

Maptuner Nano BRP Air/Fuel Logging Cable 01-MT062

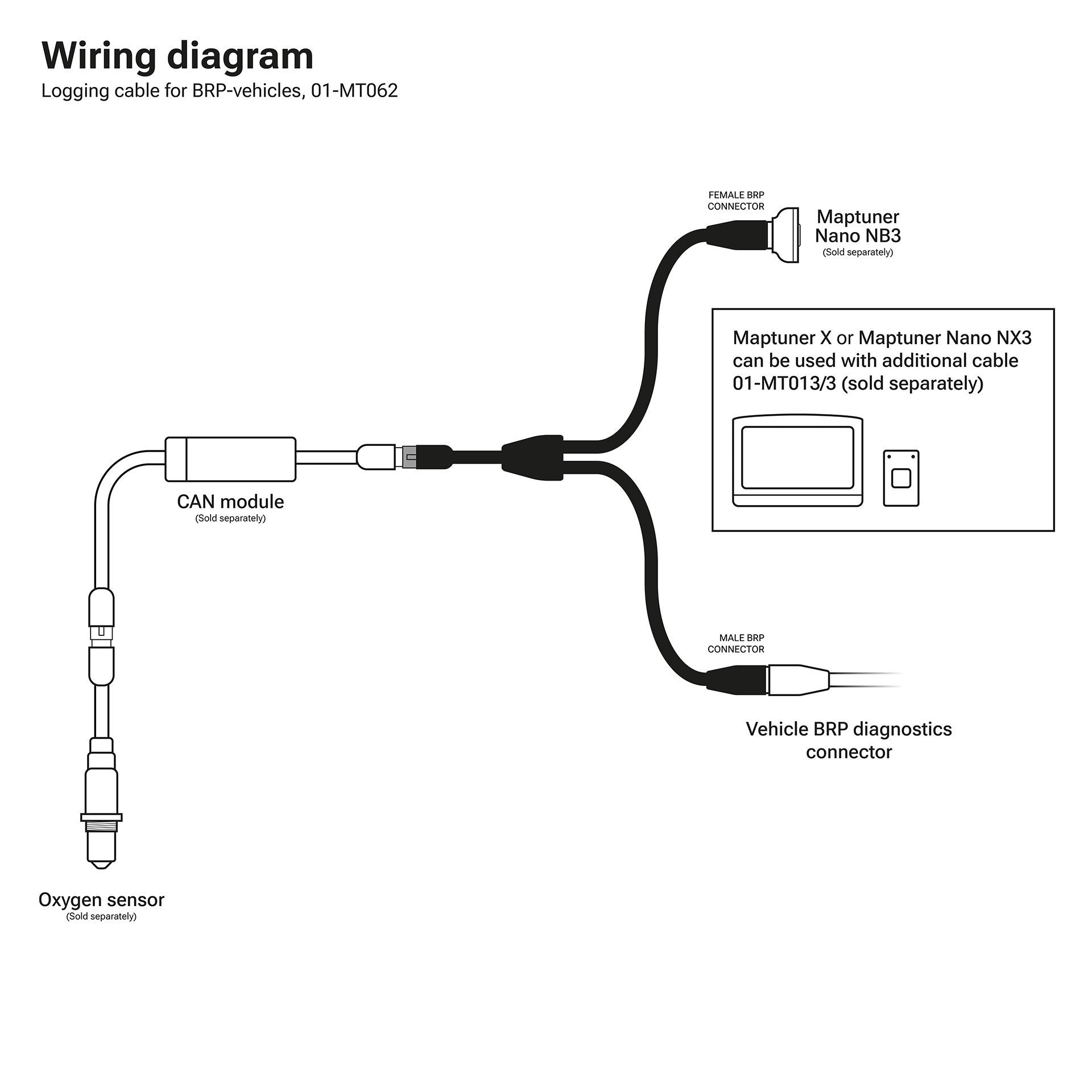

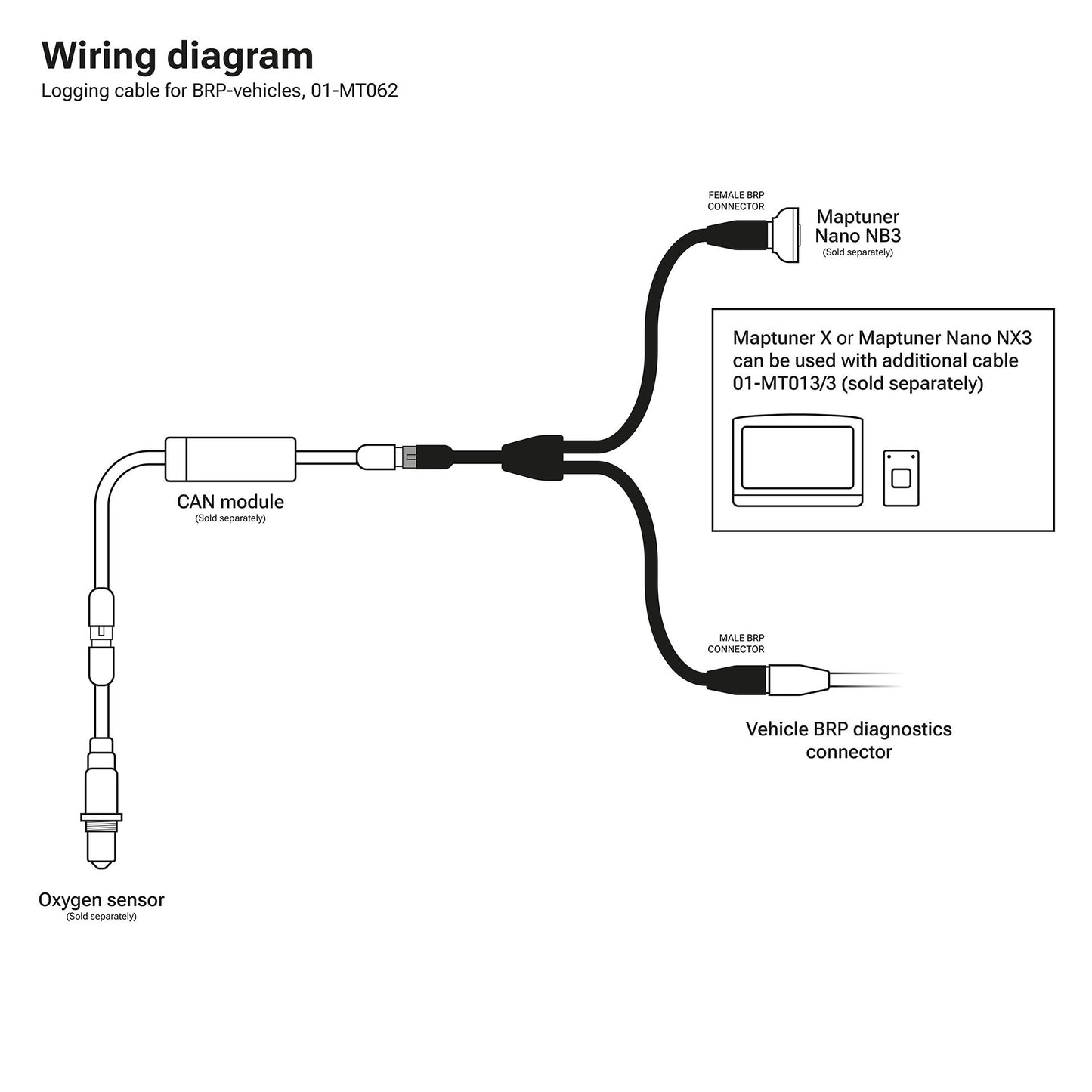

The Maptuner Nano BRP logging cable 01-MT062 allows the BRP Nano NB3A to communicate with a Bosch LSU 4.9 wideband oxygen sensor when used with the required Maptuner Lambda-to-CAN module.

Required components

• Maptuner Nano BRP NB3A — 01-NB3A
• Logging cable — 01-MT062
• Lambda-to-CAN module — 001-101
• Bosch LSU 4.9 wideband sensor — 88-308
• Activated vehicle tuning licence for AFR data logging; see the software note below

This cable alone does not provide air/fuel-ratio logging. The additional module and sensor are required.

View the NB3A BRP Nano.

Compatibility and cable choice

For supported 2017 and newer models only. This 01-MT062 cable is for the Maptuner Nano BRP NB3A. Confirm your exact vehicle, ECU and logging support before ordering; the model year alone does not establish compatibility.

For a MaptunerX or Nano NX3A HDMI setup, use the separate 01-MT061 HDMI logging cable with its required equipment.

Software for AFR data logging

RIVA specifies an activated tuning licence for the connected vehicle when recording AFR data logs. Its Data Logging Application is included with RIVA tuning licences, so do not purchase another licence if your vehicle already has the required activation. Home Service live monitoring and recording data logs are different functions; confirm the software required for your intended use.

Cable only: the NB3A device, 001-101 Lambda-to-CAN module, Bosch LSU 4.9 sensor 88-308 and any required software are separate items.
